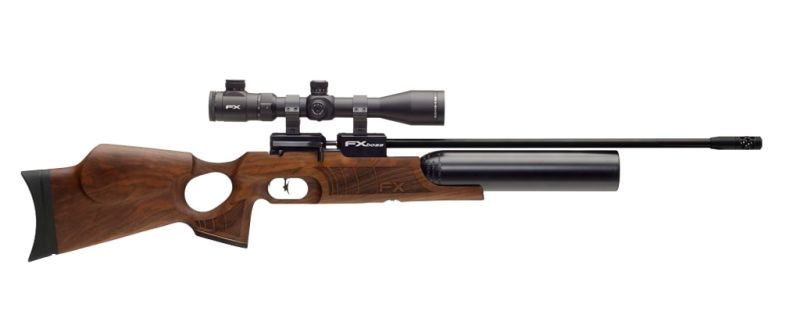

FX Crown MKII Walnut PCP Air Rifle

The dramatic evolution of airguns has ramped up demands from shooters worldwide and we have seen an increased desire for more air flow and power in our air rifles. Whereas bullpup configurations can more easily add plenum space and valving for these demands, a traditional rifle like the FX Crown was limited for these demands… until now! The FX Crown MKII brings more power and even more capabilities to an already near perfect platform.

The increased power available in the MKII comes down to a combination of valving, porting, and plenum space. The plenum of the FX Crown MKII has increased 28% over the previous model! This larger plenum (the chamber of compressed air located before the transfer port) works in tandem with the porting and a new larger valve on the MKII (6.5mm valve). The combination provides spectacular results.

Other changes to the Crown include a 20 MOA angle built into the picatinny scope rail. With air-gunners able to shoot at longer distances, this canting of the scope base at the front is what allows for more usable elevation adjustment in the scope at longer distances.

The FX Crown MKII has some new stock options as well. We have teamed up with famed Norwegian rifle stock maker GRS to provide the first ever GRS rifle stock for an airgun! GRS builds highly adjustable ergonomic laminate stocks recognized globally as an innovative premium brand. The GRS Crown stock features tool-less adjustments, a broad for-end and a ergonomic GRS grip, offset and angled, offering unsurpassed shooting comfort.

The FX Crown MKII is also offered as a stripped-down base model perfect for pairing with the recently released Saber Tactical Crown Chassis. This ambidextrous chassis is packed with features including an extended Arca Swiss rail, foldable stock, built-in detachable bag rider, adjustable buttstock, and other popular features. This will certainly be a highly popular and sought-after Crown configuration, particularly for bench shooters. The rest of the features of the FX Crown remains unchanged: the hammer power adjuster, air flow power adjuster, externally adjustable AMP regulator, ability to change calibers and twist rates through the Superlight Smooth Twist X (STX) barrel and liner system. With all this as well as the highest capacity magazine in its class, the FX Crown is solidified as the most versatile and robust sporter stock PCP air rifle available.

Specification

COCKING SYSTEM
Sidelever

MAGAZINE TYPE
Removable high capacity
22 shot when Cal .177
18 shot when Cal .22
16 shot when Cal .25
13 shot when Cal .30

STOCK

Walnut
– Ambidextrous
– Adjustable recoil-pad
– Thumbhole

CALIBER
4,5 (.177)
5,5 (.22)
6,35 (.25)
7,62 (.30)

BARREL
FX Smooth twist X Superior Liner
Match grade

AVAILABLE BARREL LENGTH

FX Smooth Twist X Superior Liner
*all except caliber 4,5 which use STX.

Standard: Length 500 mm
4,5 (.177) (Default Option)
5,5 (.22) (Default Option)
6,35 (.25)
7,62 (.30)

Plus: Length 600 mm
5,5 (.22)
6,35 (.25) (Default Option)
7,62 (.30) (Default Option)

Sniper: Length 700 mm
5,5 (.22)
6,35 (.25)
7,62 (.30)

SHOT CAPACITY

4.5 (.177): 200 shots approx.
5,5 (.22): 145 shots approx.
6,35 (.25): 110 shots approx.
7,62 (.30): 40 shots approx.

FILL PRESSURE
Max 250 bar (3600 psi)

*all except VP Edition which Max is

230 Bar (3300 psi)

SAFETY
Switch style

OPTICS
Picatinny scope mount With 20 MOA angle

MUZZLE
1/2" UNF Thread

PRESSURE GAUGE
Dual Manometers
One for airtube pressure
One for regulator pressure

TRIGGER
Adjustable Match Trigger

VELOCITY

4,5 (.177): 300 m/s • 1000 ft/s
5,5 (.22): 280 m/s • 920 ft/s
6,35 (.25): 270 m/s • 900 ft/s
7,62 (.30): 265 m/s • 870 ft/s

Note: above figures is factory recommended FAC Power output, but can be turned higher/lower if needed.

ENERGY

4,5 (.177): up to 38 J • 28 ft/lbs
5,5 (.22): up to 73 J • 54 ft/lbs
6,35 (.25): up to 88 J • 65 ft/lbs
7,62 (.30): up to 123 J • 75 ftlbs
Note: Above figures is achieved with maximum length of barrel and in some cases heavy ammunition. Shorter barrel will produce less energy then the above.

AIR CAPACITY
480 cc

AIR CYLINDER

Removable
Carbon fiber wrapped
*all except VP version which is aluminum

LENGTH
98 - 100 cm (Cal. .177 / .22) with default barrel length
108 - 110 cm (Cal. .25 / .30) with default barrel length

WEIGHT
3 kg

CHARGING
Foster Quick Disconnect

MORE FEATURES
Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).

Dual External Power.

Adjusters (hammer spring tension and airflow).

AMP Externally adjustable pressure regulator.

Interchangeable Caliber System.

Please note: Scope & scope mounts are not included!
