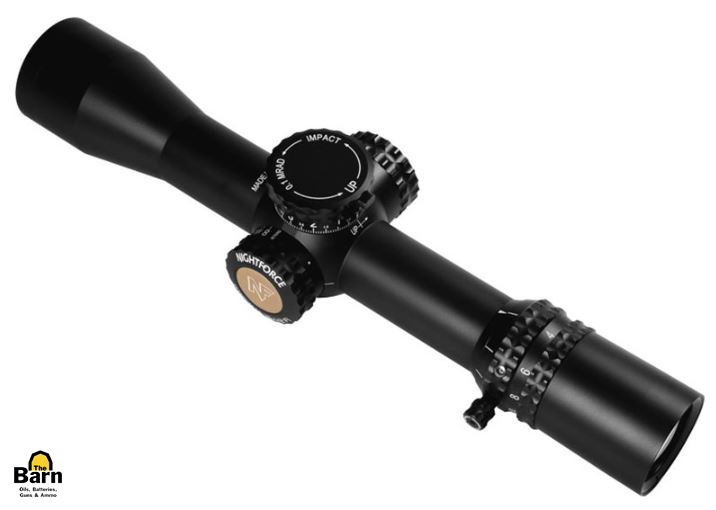

Nightforce ATACR - 4-16x42mm F1 - ZeroHold™ First Focal Plane

Focal Plane	First
Magnification Range	4-16x
Objective lens diameter	42mm
Tube diameter	34mm/1.34in in
Internal adjustment range (MOA/Mil)	e: 89 MOA w: 60 MOA e: 26 Mil w: 18 Mil
Click value	.250 MOA .1 Mil-rad
Calibrated Ranging Power	N/A
Parallax adjustment	45 yd–∞
Exit pupil diameter	4x:10.3mm 16x:2.7mm
Eye relief	85-90mm/3.35-3.54 in
Field of view @100 yards/100 meters	4x: 26.9ft 16x: 6.9ft 4x: 8.1m 16x: 2.1 m
Objective outer diameter	50mm
Eyepiece outer diameter	45 mm
Overall length (inches/mm)	12.6in/320 mm
Weight (ounces/grams)	30 oz/850g
Mounting length (inches/mm)	6.3 in/160 mm
Front/Rear Mounting Length	2.00 in/2.53 in
PTL (Power Throw Lever)	Standard

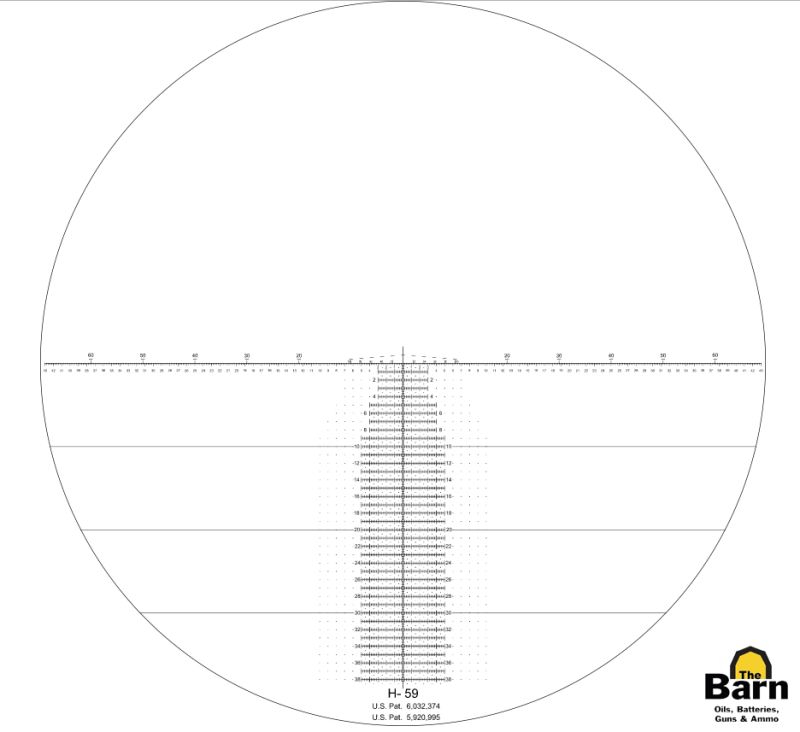

Reticles available	MOAR™ MIL-R™ H59 * TReMoR3 *
Illumination	(*Non-Illuminated)
Elevation Feature

Part Numbers: C542, C552, C588, C575, C573, C615, C647

Product Code: C542, C552, C588, C575, C573, C615, C647

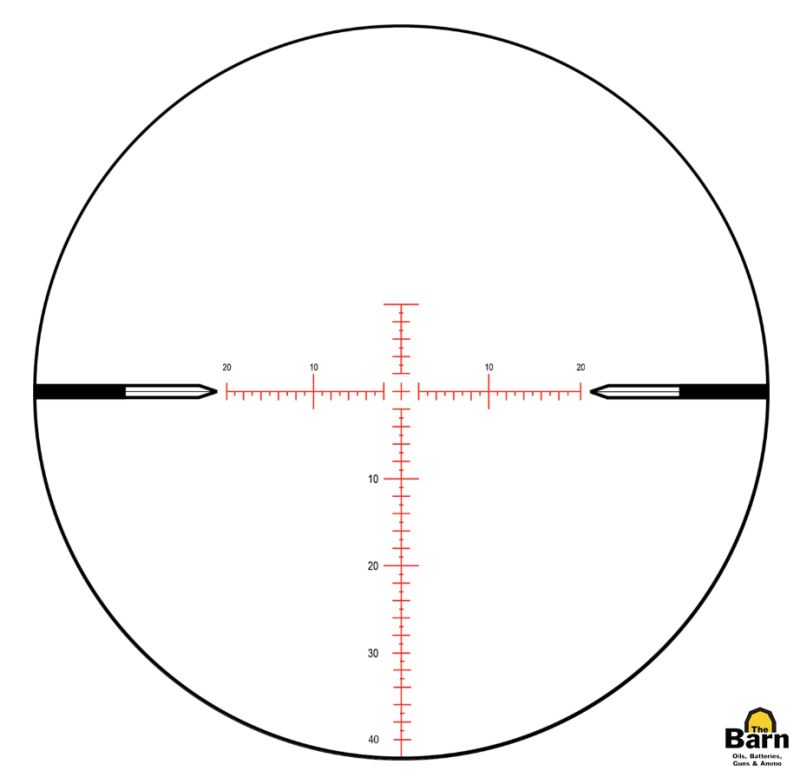

$3,745.00 C542 - .250 MOA - DigIllum™ - PTL - MOAR™

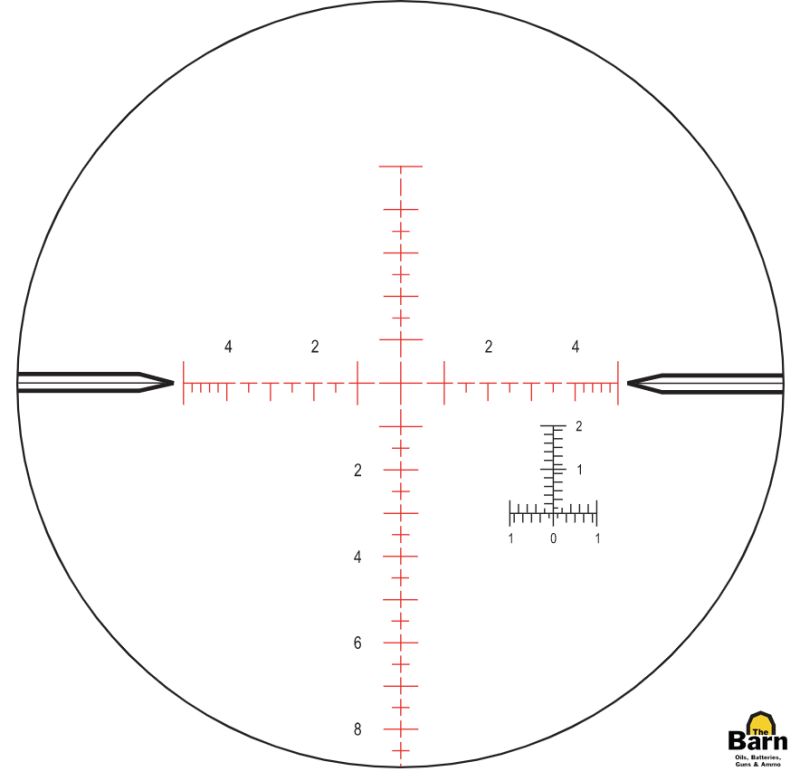

$3,745.00 C552 - .1 Mil-Radian - DigIllum™ - PTL - Mil-R™

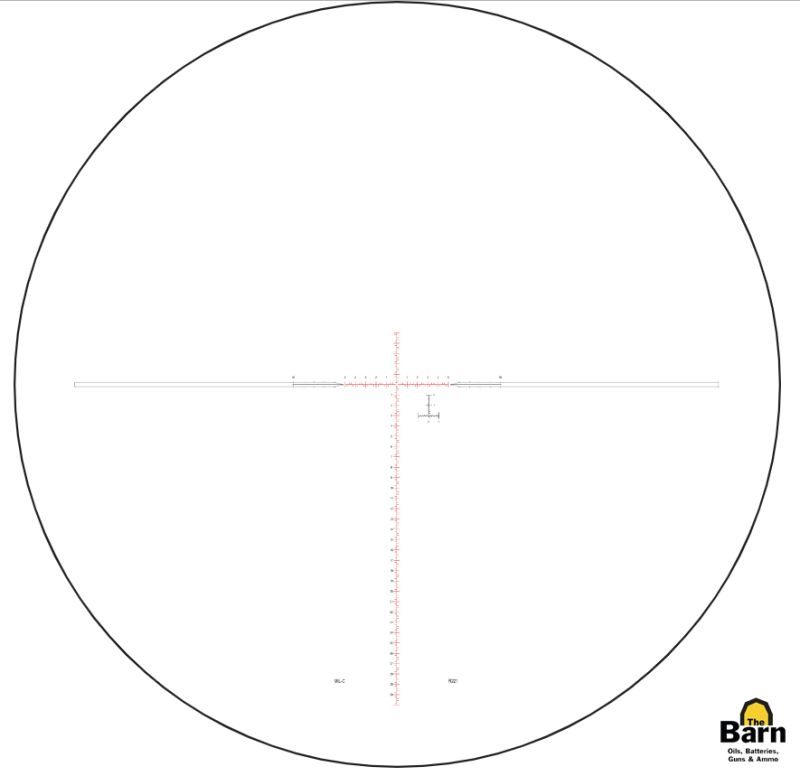

$3,745.00 C588 - .1 Mil-Radian - Diglllum™-PTL-Mil-C™
$4,125.00 C575 - .1 Mil-Radian - DigIllum™- PTL - TReMoR3

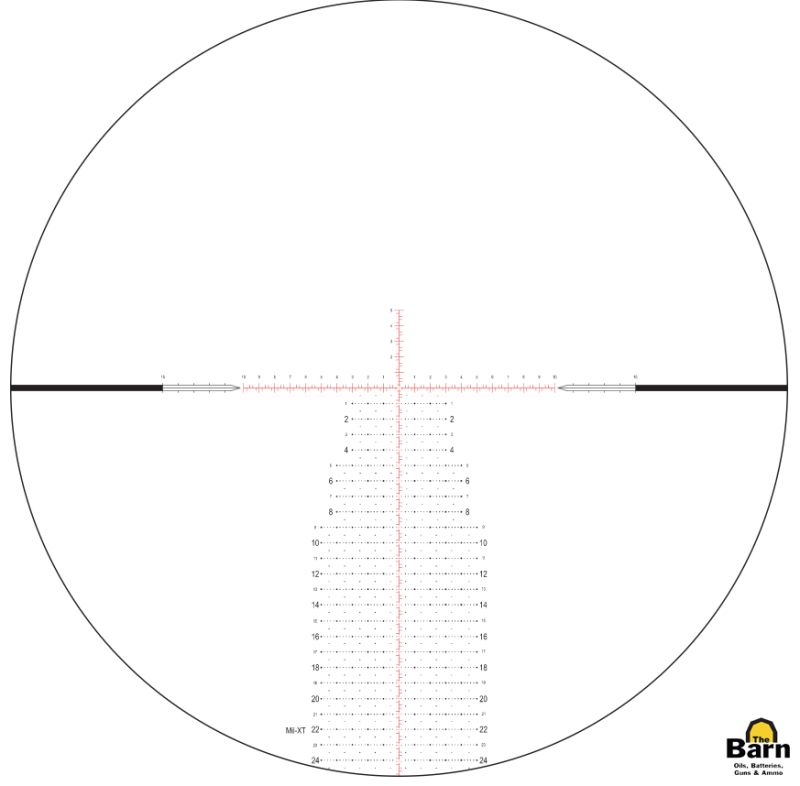

$3,745.00 C615 -.1 Mil-Radian - DigIllum™-PTL-Mil-XT™
$4,710.00 C647 - MOA - CW - DigIllum™ - MOA-XT
