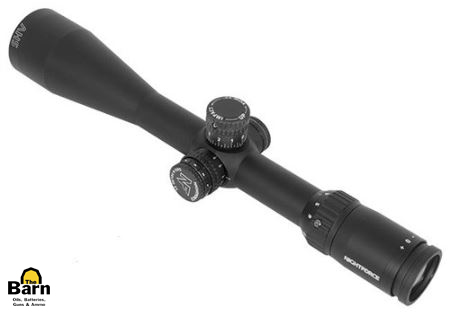

Nightforce SHV 4-14x50mm F1 First Focal Plane
Nightforce SHV 4-14x50mm F1 First Focal Plane
Capitalizing on the award-winning success of our current SHV family, the new SHV 4-14x50 F1 delivers first focal plane performance in a versatile, mid-power package suitable for a wide range of shooting applications.

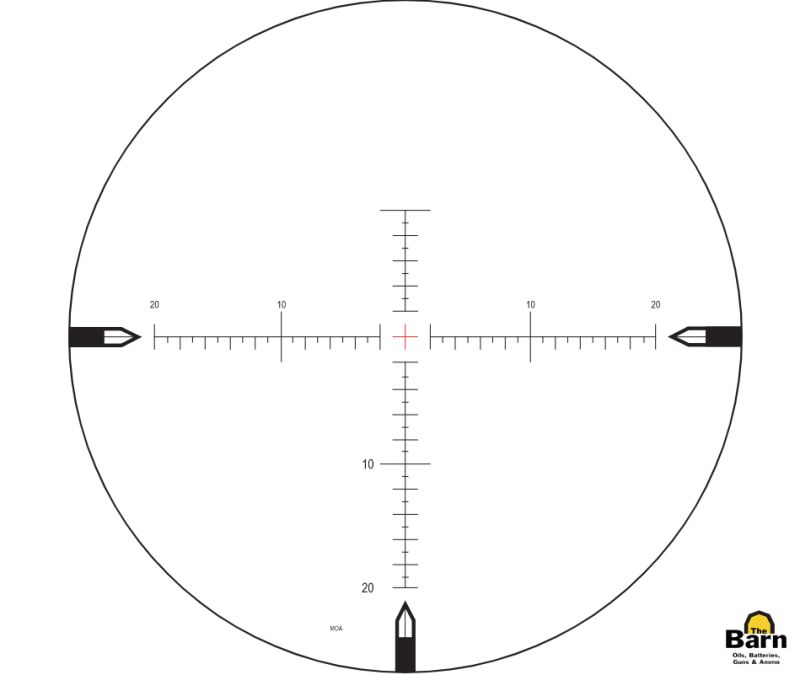

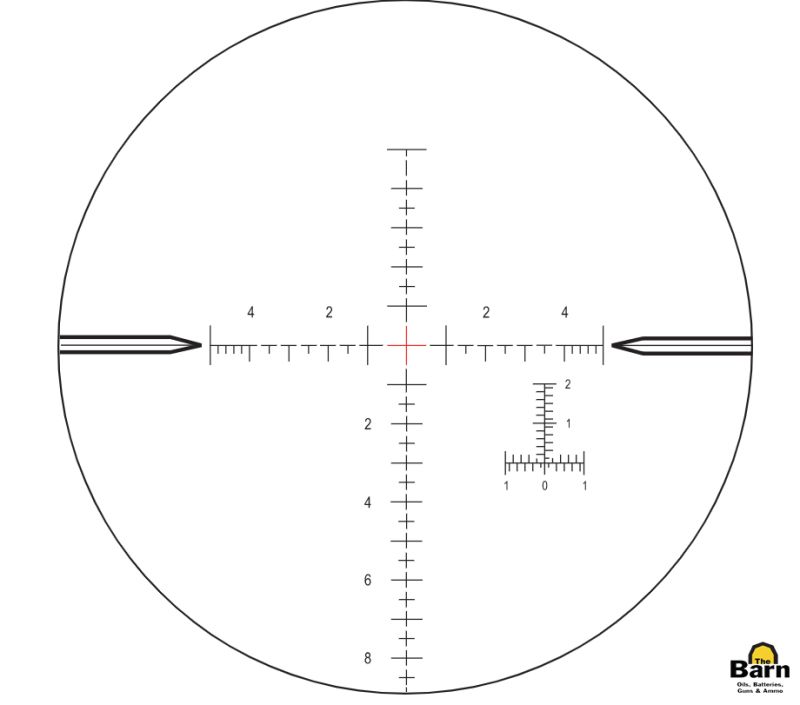

This riflescope brings a first focal plane option to the SHV family. This feature gives the shooter the option of precisely holding for elevation and wind at any magnification setting by using the intelligence built into the reticle. This SHV is offered with a choice of either the MOAR or MIL-R reticle, which are two of our most popular designs. Both reticle options are standard with illumination.
This new SHV incorporates a feature set built for versatility, starting with a 4-14x magnification range that offers an excellent combination of field of view and resolving power at higher magnification. The 50mm objective offers excellent light transmission at any time of day. The overall length is 14.8 inches, and the optic weighs in at 30 ounces.
This SHV has a 30mm main tube, which allows for a maximum adjustment range of 90 minutes or 26 Mil-radians, and the adjustments are quarter-minute of angle or tenth mil-radian based upon reticle choice. Ten minutes of angle or 5 mil-radians of adjustment per revolution is standard.
Standard Features
The Nightforce ZeroSet feature is also standard and allows for a rapid return to zero in any condition from any distance. The exposed elevation adjustment allows quick access, and a capped windage prevents accidental adjustments during travel or in the field.
Parallax is adjustable from 25 yards to infinity, and it does so without any backlash or hesitation. Also, the external illumination dial has 12 brightness settings.
The power zoom ring allows for quick and precise magnification adjustments, and a clamp-on Power Throw Lever is available as an accessory. The fast focus eyepiece design is standard, as on every SHV model.
Whether you’re making adjustments on the fly for a quick shot on uncooperative game or venturing into the fast action found in the precision rifle sports, you can trust the SHV 4-14x50 F1 to deliver precision at speed.
Staying true to our quality pledge, our SHV riflescopes undergo a rigorous inspection process before they can wear the Nightforce name.
SHV Product Family - Recipient of the Award of Excellence in the Optic Product Of The Year category from Sporting Classics
|
SPECIFICATIONS
|
SHV 4-14 x50 F1
|
|
Focal Plane
|
First
|
|
Magnification Range
|
4-14x
|
|
Objective lens diameter
|
50mm
|
|
Tube diameter
|
30 mm/1.18 in
|
|
Internal adjustment range (MOA/Mil)
|
e: 90 MOA
w: 70 MOA
e: 26.2 Mil
w: 20.4 Mil
|
|
Click value
|
.250 MOA
.1 Mil-rad
|
|
Calibrated Ranging Power
|
N/A
|
|
Parallax adjustment
|
25 - ∞
|
|
Exit pupil diameter
|
4x: 10.8 mm
14x: 3.3 mm
|
|
Eye relief
|
70-80 mm/2.8 - 3.1 in
|
|
Field of view @100 yards/100 meters
|
4x: 25.1 ft
14x: 7.4 ft
4x: 7.65 m
14x: 2.26 m
|
|
Objective outer diameter
|
59 mm
|
|
Eyepiece outer diameter
|
43.6 mm
|
|
Overall length (inches/mm)
|
14.8 in/376 mm
|
|
Weight (ounces/grams)
|
30 oz/850g
|
|
Mounting length (inches/mm)
|
6.2 in/157 mm
|
|
Front/Rear Mounting Length
|
2.19 in/55.8 mm
|
|
PTL (Power Throw Lever)
|
Accessory
|
|
Reticles available
|
MOAR™; MIL-R™
|
|
Illumination
|
Standard
|
|
Elevation Feature
|
ZeroSet™
|
Part Number: C556 , C557, C694
Product Code: C556, C557, C694
