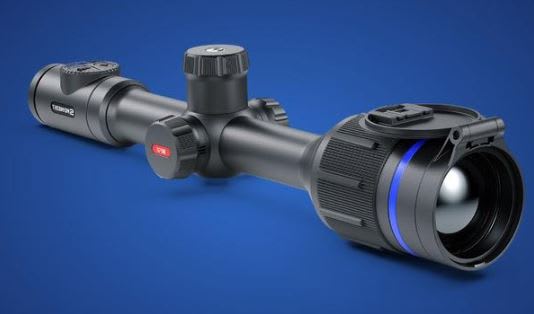

YU76548 PULSAR THERMION 2 XQ50 PRO THERMAL SCOPE
U76548 PULSAR THERMION 2 XQ50 PRO THERMAL SCOPE
Sensor 384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens F50 F/1.0
Magnification, x 3-12
Field of view (HxV), degrees / m@100m - 7.5/13.1
Detection range, m -1800
Sensor
Type -uncooled
Resolution, pixels-384x288
Pixel pitch, µm -17
NETD, mK - <25
Frame rate, Hz-50
Objective lens -F50 F/1.0
Magnification, x -3-12
Field of view (HxV), degrees / m @ 100 m -7.5/13.1
Eye relief, mm -50
Type -AMOLED
Resolution, pixels -1024x768
Range Performance
Detection range, m -1800
Laser Rangefinder -
Safety class for laser equipment according to IEC 60825-1:2014
Wavelength, nm --
Max. measuring range, m--
Measurement accuracy, m--
Reticle
Click value, H/V, mm at 100 m -13 – 3x, 6.5 – 6x, 3.25 – 12x
Click range, H/V, mm at 100 m -2600/2600
Number of preloaded reticles -10
Video Recorder
Video / photo resolution, pixel -1024х768
Video / photo format -.mp4 / .jpg
Built-in memory, GB -16
Wi-Fi
Wireless Protocol -Wi-Fi
Wireless Standard -802.11 b/g/n/ac
Frequency, GHz -2.4 / 5 GHz
Environmental Characteristics
Degree of protection, IP code (IEC60529) -IPX7
Operating temperature range, °С - -25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules -6000
Shock resistance on the smooth-bore rifles, caliber -12
Compatible mounts -Standard 30 mm rings
Remote control --
Supported Application -Stream Vision 2
Power Supply
Output voltage, V -3.0–4.2
Battery type
Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)
Capacity, mAh -2000 (external) + 3200 (external)* + 4900 (internal)
Operating time on battery pack (at t=22°C), h * -10
External power supply, V -5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material -Metal
Dimensions, mm -412x78x83
Weight, kg -0.9
Trade Data -SKU (Model #) -76548
